Original Article
5 (
); 197-201

An evaluation of panoramic radiograph to assess mandibular asymmetry as compared to posteroanterior cephalogram

Department of Orthodontics and Dentofacial Orthopaedics, School of Dental Sciences, Sharda University, Knowledge Park III, Greater Noida, Uttar Pradesh, India
Address for correspondence: Dr. Astitva Agrawal, Department of Orthodontics and Dentofacial Orthopaedics, School of Dental Sciences, Sharda University, Knowledge Park III, Greater Noida, Uttar Pradesh, India. E-mail:
This is an open-access article distributed under the terms of the Creative Commons Attribution-Non Commercial-Share Alike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms.
This article was originally published by Wolters Kluwer and was migrated to Scientific Scholar after the change of Publisher; therefore Scientific Scholar has no control over the quality or content of this article.

How to cite this article: Agrawal A, Bagga DK, Agrawal P, Bhutani RK. An evaluation of panoramic radiograph to assess mandibular a! symmetry as compared to posteroanterior cephalogram. APOS Trends Orthod 2015;5:197-201.


Aim and Objectives

To assess the reliability of orthopantomograms (OPGs) in detecting facial asymmetry.

Materials and Methods

The OPGs and posteroanterior cephalograms for 10 patients with facial asymmetry were obtained from the outpatient department of the dental college. These radiographs were traced and analyzed. Six measurements (four linear and two angular measurements) were made on both sides. Asymmetry was defined by subtracting the right and the left side measurements. The differences from OPG were compared to those obtained from posteroanterior cephalograms. The kappa statistics and intra-class correlation coefficient (ICC) were used to calculate the differences.


The ICC was calculated between OPGs and posteroanterior cephalograms difference measurements. The class interval for all measurements was noted between 0.61 and 0.84. The ICC was 0.7861, which shows strong correlation between the values (P < 0.0005) by probability 10−5, within 95%, coefficient correlation lies between 0.61 and 0.84. Kappa test gives a value of 0.64, which shows strong agreement between the measurements.


Individually, the measurements from OPGs may not be reliable but the obtained difference between the values of the OPGs and the posteroanterior cephalograms are comparable in nature and show strong correlation and can be used to detect facial asymmetry.


posteroanterior cephalograms


The primary goal of orthodontic treatment is to create a balanced and harmonious facial appearance. Although perfect craniofacial symmetry does not exist in nature, asymmetry ranges from clinically undetectable to a gross abnormality.

The etiology of mandibular asymmetry is vast and might be a combination of genetic and environmental influences. Common causes include trauma, infections, developmental abnormalities, myogenic problems, and syndromes such as Treacher Collins, occlusal interferences, and joint pathologies like rheumatoid arthritis. Traditionally, mandibular asymmetry has been diagnosed by a combination of tools. These include a thorough clinical examination followed by photographs of various frontal and side views, in addition to radiographs such as lateral and posteroanterior cephalograms, oblique radiographs of the mandible taken at 45°, and panoramic radiographs.[1-3]

The orthopantomogram (OPG) is commonly used in daily clinical routine. This radiograph allows a bilateral view and adequate information on vertical measurements. Studies on panoramic radiography have shown that horizontal measurements tend to be particularly unreliable because of nonlinear variation in magnification at different object depths,[4] whereas vertical and angular measurements are acceptable provided the patient’s head is positioned properly.[5]

The diagnosis of asymmetries is important for treatment.[6] Although most practitioners do not use panoramic images for mandibular asymmetry diagnosis,[7,8] other studies support their use and show that some practitioners depend on conventional panoramic images.[9-11]

Since long the posteroanterior cephalogram has been used in the orthodontic and orthognathic diagnosis and surgery planning for the treatment of asymmetry.[12-14] The posteroanterior cephalogram provides valuable mediolateral information which is useful for facial asymmetric evaluation and essential for transverse evaluation of the craniofacial skeleton and dentoalveolar structures.[14]

Transversal measurements can be performed on both a posteroanterior cephalogram and an oblique mandibular radiograph. Both types of radiographs, however, have limitations in both methods that are affected by a tilt of the head or angulation of the beam.[13,15]


Ten patients having facial asymmetry were selected from the visiting dental outpatient department. A routine, conventional panoramic radiograph made by a standardized technique was used for the analysis. A posteroanterior cephalogram was taken from the same unit from where the OPG was taken. Both radiographs were manually traced on acetate sheets-economy grade lacquered polyester single matte (Garware Polyester Ltd., Mumbai, India). Thickness was 50 μ with a 0.5 mm thick lead 3H pencil.

Linear and angular measurements were made on both the tracings. Since the measurements made on the posteroanterior cephalograms were considered to be the gold standard for measuring asymmetry, the values obtained from the panoramic image was compared to them to check the reliability and accuracy of the panoramic radiographs.


  1. Orbitale (Or) — Lowest point on bony orbit [Figure 1a and b].

    Figure 1: (a) Landmarks made on orthopantomogram. (b) Landmarks made on posteroanterior cephalogram

  2. Condylion (Co) — Most superior point on coronoid process [Figure 1a and b].

  3. Sigmoid notch point (Snp) — Deepest point on sigmoid/mandibular notch [Figure 1a and b].

  4. Gonion (Go) — Most posteroanterior point at the angle of mandible [Figure 1a and b].

  5. Menton (Me) — The most inferior midline point on the mandibular symphysis, the lowest point on the symphyseal shadow of the mandible [Figure 1a and b].

Horizontal plane

  1. Orbital plane — Line connecting point orbitale bilaterally [Figure 2a and b].

    Figure 2: (a) Horizontal planes in orthopantomogram. (1) Orbital plane. (2) Sigmoid notch plane. (3) Mandibular plane. (b) Horizontal planes in posteroanterior cephalogram. (1) Orbital plane. (2) Sigmoid notch plane. (3) Mandibular plane

  2. Sigmoid notch planes — Tangent drawn from the deepest point on sigmoid notch parallel to orbitale plane (drawn on the left and right sides separately) [Figure 2a and b].

  3. Mandibular plane — Line drawn from the lower most point on mandible parallel to the orbitale plane [Figure 2a and b].

Following linear measurements will be made on both tracings

  1. Length of condyle — Measured from the Co to sigmoid notch plane along the long axis of condylar process [Figure 3a and b].

    Figure 3: (a) Linear measurements of both sides on orthopantomogram. (1) Condylar length. (2) Ramus length. (3) Corpus length. (4) Total length. (b) Linear measurements made on posteroanterior cephalogram (1) condylar length. (2) Ramus length. (3) Corpus length. (4) Total length

  2. Length of ramus — Measured from point Co to point Go [Figure 3a and b].

  3. Length of corpus — Measured from point Go to point Me [Figure 3a and b].

  4. Total length — Measured from Co to point Me [Figure 3a and b].

Following angular measurements will be made on both tracings

  1. Gonial angle — Co-Go-Me [Figure 4a and b].

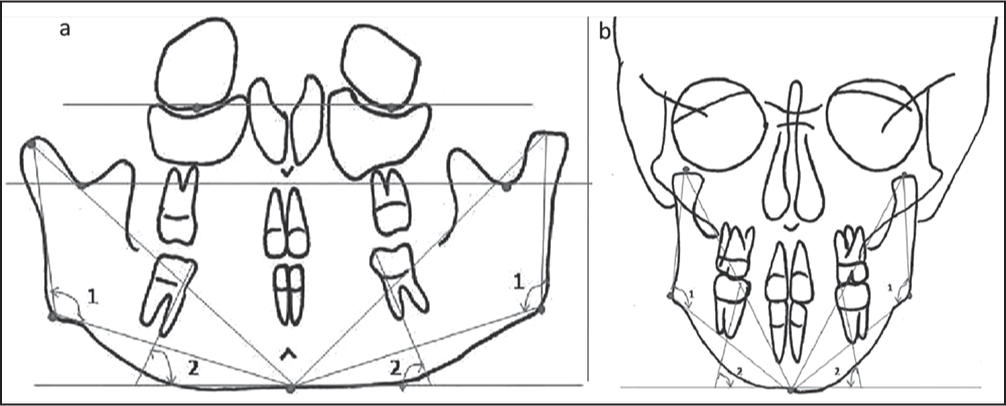

    Figure 4: (a) Angular measurements made on orthopantomogram. (1) Gonial angle. (2) Inclination of first molar angulation. (b) Angular measurements made on posteroanterior cephalogram. (1) Gonial angle. (2) Inclination of first molar angulation

  2. Mandibular first molar angulation — Angulation of mandibular molars to the mandibular plane (line passing through mesiobuccal cusp and mesial root to mandibular plane) [Figure 4a and b].

Exclusion criteria

Samples were excluded on the bases of unerupted or missing incisors, unerupted or missing molars, unerupted teeth overlying the incisors, and molar apices, as well as rotated head.

The six measurements (four linear and two angular) were made separately for OPG tracings and posteroanterior cephalogram. The differences were calculated for the left and right sides, and asymmetry was defined.

Correlation was calculated with a variance components analysis using the intra-class correlation coefficient (ICC). The ICC has a value between 0 and 1 and measures the strength of agreement among observer. The ICC is similar to the kappa coefficient. Analogous to kappa, an ICC of 0.61 to 0.80 is interpreted as substantial agreement and an ICC of 0.81-1.00 as an almost perfect agreement.


Comparison between orthopantomogram and posteroanterior cephalogram – statistical analysis

The asymmetries as measured by the OPG and by the cephalograms for the different variables of the ten patients are shown by calculating the mean and standard deviation [Table 1]. The correlation coefficient between the two columns is 0.75. The probability of obtaining such a high correlation coefficient from random uncorrelated data is 5.5 × 10−12. The 95% confidence interval for the correlation coefficient is (0.61, 0.84). Thus, the probability for the correlation coefficient to lie between 0.61 and 0.84 is 95%. It can be concluded that there is very strong correlation between the asymmetries as measured by the two methods [Table 2 and Figure 5].

Table 1: Mean and SD of OPG and posteroanterior cephalogram, OPG versus posteroanterior cephalogram mean difference and SD, paired t-test, and P-value computed for each variable showing discrepancy between right and left side different radiographs
Variable OPG mean±SD PA cephalogram mean±SD OPG Vs PA cephalogram mean difference and SD Paired t test p value
Length of condyle (Co-Snp) 1.2±0.918937 2±1.66667 1±1.1055 0.10018 0.2004
Length of ramus (Co-Go) 1.8±0.918937 2.35±0.944281 0.65±0.7472 0.10168 0.2034
Length of corpus (Go-Me) 2.15±1.780293 2.65±1.616753 1.1±0.8432 0.25959 0.5195
Total length (Co-Me) 2.55±1.442413 2.1±1.629588 0.75±0.6346 0.26072 0.5215
Gonial angle (Co-Go-Me) 2.4±1.149879 2.3±1.512907 0.8±0.5374 0.43484 0.8697
Mandibular 1st molar angulation 2.45±1.921371 3.25±1.512907 0.8±0.5374 0.18957 0.3791

SD – Standard deviation; OPG – Orthopantomogram

Table 2: Correlation coeffcient for discrepancy between the left and right sides of individuals showing asymmetry detected with OPG and posteroanterior cephalogram
Variable no Variable r value
V1 Length of condyle(Co-Snp) 0.652929
V2 Length of ramus(Co-Go) 0.601823
V3 Length of corpus(Go-Me) 0.695821
V4 Total length(Co-Me) 0.836688
V5 Gonian angle(Co-Go-Me) 0.753659
V6 Mandibular 1st molar angulation 0.965166

*P value is set at <0.0005; **Values < 0 as – no agreement; 0–0.20 – slight; 0.21–0.40 – fair; 0.41–0.60 – moderate; 0.61–0.80 – substantial; 0.81–1 – almost perfect agreement

Figure 5: Correlation discrepancy between the left and right sides of individual variables showing asymmetry detected orthopantomogram and posteroanterior cephalogram values for each variable

These values [Table 1] give the probability that the two columns are drawn from the same normal distribution. Differences are regarded as significant if the P < 0.05. As each of the P values for all the six variables is more than 0.05, the difference is not significant for any of the variables.

Kappa test gives a value of 0.64, which shows strong agreement between the measurements. 0-0.20 as slight, 0.21-0.40 as fair, 0.41-0.60 as moderate, 0.61-0.80 as substantial, and 0.81-1 as almost perfect agreement as suggested by Landis and Koch.

The ICC between posteroanterior cephalogram and OPG was investigated together. No significant differences were found between the OPG and posteroanterior cephalogram.

In accordance with the P value selected for the purpose of our study, it is observed that no significant difference is present between the variables (P < 0.0005). Therefore, the results are in line with our initial hypothesis which stated that asymmetry noted from OPG can be compared to the asymmetry obtained from posteroanterior cephalogram


Traditionally, the values of OPG have been studied in isolation, which arguably may not provide the most reliable results. Hence, the main focus of this study was aimed at trying to establish a better mechanism to derive greater reliability in calculating asymmetry.

The goal of this study was to gain some clarity regarding the diagnosis of mandibular asymmetry with panoramic radiographs. A criterion for this study was the use of a gold standard to evaluate the accuracy of the panoramic image in the detection of mandibular asymmetry.

Diagnosing of mandibular asymmetry is a complex problem. Mandibular asymmetry may be caused by a number of factors such as condylar hyperplasia, hemimandibular hypertrophy, hemimandibular elongation, coronoid hyperplasia, and temporomandibular joint disorders, etc. Though the precise differentiation of these conditions may be confusing, clinical environment requires radiographic impressions at first hand before any other data are available.

Tronje et al.[4] mathematically calculated the accuracy of panoramic measurements. Within certain limits, the panoramic film can be used for vertical measurements in clinical practice if the patient is properly positioned. They also concluded that horizontal dimension is unreliable.

Habets et al.[11] altered the central position of a synthetic mandible up to 10 mm in the horizontal plane of a Siemens orthopantomograph 5 and took nine pantomographic radiographs. The authors suggested that the 6% observed difference between left and right condylar height measured on the panoramic film might be a result of technical errors, and differences greater than 6% can be considered true vertical asymmetry.

Kjellberg et al.[16] imaged two dry skulls in six positions with three panoramic units. They found out that manufacturer’s listed magnification for the panoramic unit might not correct for all areas of the panoramic radiograph. Therefore, different panoramic machines provide different measurements. Condylar ratio can be used to look for condylar height asymmetries, unaffected by positioning error, distortion, or magnification errors.

Laster et al.[17] compared horizontal and vertical measurements of anatomic points on 30 skulls imaged with ideal, 7 mm laterally shifted, and 10° rotation around a vertical axis positioning in a Sirona Orthophos Plus Panoramic Unit with measurements obtained by software on digital images. The purpose of this study was to assess the changes in both linear measurements and symmetry ratios on panoramic radiographs. They found that horizontal measurements provided the greatest differences between the panoramic image and actual skull. Magnification reported by the manufacturer was consistently less than the calculated magnification. Accuracies for detecting asymmetry on the panoramic image were 67% for ideal, 70% for rotated, and 47% for shifted. They said that caution should be used when making absolute measurements or relative comparisons.

Kambylafkas et al.[18] evaluated the ability of panoramic radiographs to assess side-to-side differences in condyle and ramus height. By using a phantom marked with radiopaque steel balls representing either right or left side of mandible, two sets of panoramic films were created with an OPG OP 100. They found that 2.1% average variation in the total height of the mandible laminograph is recommended as the gold standard for measuring posterior vertical mandibular asymmetry. Correlation between the laminograph and panoramic measurements is 0.92 for total height and 0.39 for condylar height. Using the 6% cut off reported by Habets et al.,[11] the sensitivity and the specificity for diagnosing mandibular asymmetries with panoramic images are 0.62 (total height) and 1.0, respectively. The panoramic radiograph can be used to evaluate vertical posterior mandibular asymmetry.

In another study, the ICC between lateral cephalogram and OPG was investigated for the orthodontists and maxillofacial surgeons together for linear measurements. No significant differences were found between the OPGs and lateral cephalogram.[19-20]

Horizontal measurements have been shown to be particularly unreliable because of the nonlinear variation in the magnification at different object depths; whereas, vertical measurements are relatively reliable.[4]


Following results have been concluded:

  • A strong correlation exists between the posteroanterior cephalogram and OPG.

  • All the variables taken in this study, that are four linear measurements-length of condyle (Co-Snp), length of ramus (Co-Go), length of corpus (Go-Me), total length (Co-Me) and two angular measurements-gonial angle (Co-Go-Me), and mandibular first molar angulation, are found to be comparable in both posteroanterior cephalogram and OPG.

  • Clinically, the panoramic view is unique and may be used as a primary diagnostic tool in detecting asymmetry along with posteroanterior cephalogram.

Financial support and sponsorship


Conflicts of interest

There are no conflicts of interest.
